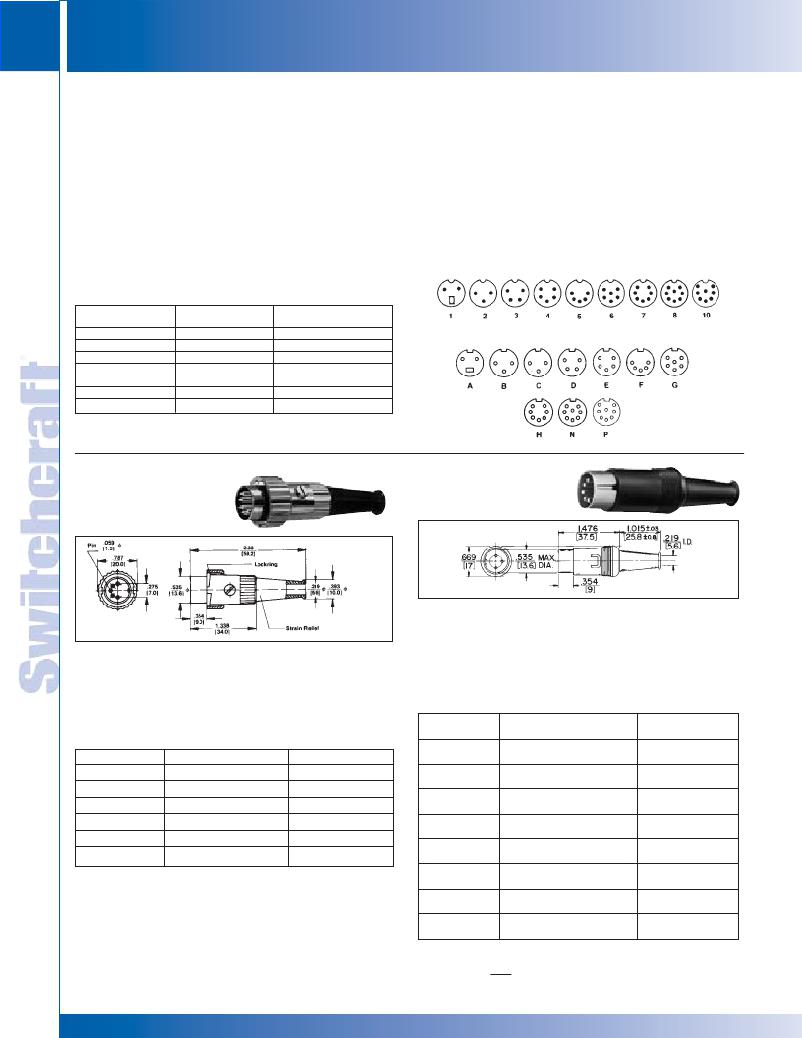

46
CONNECTORS & RECEPTACLES
DIN CONNECTORS AND PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
DIN CONNECTORS
SPECIFICATIONS
ELECTRICAL
Contact Resistance: Cord Plugs and Receptacles;
.010 ohms, contact spring/pin .030 ohms, ground clip/shell.
Control and Switching Receptacles; .015 ohms, contact
spring/pin; .020 ohms, switch contacts.
Dielectric Withstanding Voltage: 500 V (rms)
Contact Rating: 5-pin; 3A, 34 V DC
Leakage Resistance: 10 5 M ?
Recommended Wire Size: 22 wire gauge maximum
MECHANICAL
INSERTION/WITHDRAWAL FORCES:
MATERIAL
Shell: Die-cast zinc alloy, nickel-plated.
Receptacle Mounting Flange: Steel.
Receptacle Body: Plastic.
Insert Material: Plastic.
Socket Contacts: Tin-plated.
Pin Contacts: Tin-plated.
Switching Contacts: Silver-plated.
Cable Relief Bushing: Soft plastic.
PIN ARRANGEMENTS
Number of
Contacts
Insertion Force
pound/N
Withdrawal Force
pound/N
2
3
4
5
6
7
8
3.6/(16)
5.4/(24)
7.2/(32)
9.0/(40)
10.8/(48)
12.6/(56)
14.4/(64)
.45- 2.7/(2-12)
.67- 4.1/(3-18)
.90- 5.4/(4-24)
1.24- 6.8/(5.5-30)
1.46- 8.1/(6.5-36)
1.68- 9.5/(7.5-42)
1.90-10.8/(8.5-48)
CONTACT ARRANGEMENTS
NOTE: All connectors meet DIN specifications #41524. Din specification
numbers (except for 4-pin, 5-pin @ 240°, and 8-pin @ 262°)
DIN PLUGS
STRAIGHT
CORD PLUG
STRAIGHT
CORD PLUG
with Shielded Barrel
with 30° lock ring
Type 15GM7M – typical: Male cord plug with shielded barrel
and insulated snaplock plastic body. Two piece metal barrel
surrounds pin insert to form an electrical shield. The entire
Type 05CL5M – typical Male plug with ground key-rib.
Unique 30° turn lockring securely fastens two halves of
connector. Mates with lock flange female connectors and
receptacles. Insert screw holds insert assembly in shell and
also retains lockring on shell. Flexible black strain relief with
7/32" diameter cable entry. Heavy duty clamp.
insert assembly is held together by snapping the insulated
plastic shell over the assembly. The barrel’s special metal tab
locks the shell in place. Standard color of plastic shell is gray.
All-purpose cable clamp.
ORDERING INFORMATION
Pin
?
ORDERING INFORMATION
Part Number Description
Pin Arrangement
Part Number
05GM3M
Description
3 pins at 180°
Gray body and strain relief.
Arrangement
2
?
? 05CL3M
05CL5M
? 09CL4M
? 12CL5M
? 15CL7M
? 15CL8M
3 pins at 180°
5 pins at 180°
4 pins at 210°
5 pins at 240°
7 pins at 270°
8 pins at 270°
2
5
3
4
7
9
05GM5M
? 09GM4M
12GM5M
? 12GM6M
5 pins at 180°
Gray body and strain relief
4 pins at 210°
Gray body and strain relief
5 pins at 240°
Gray body and strain relief
6 pins at 240°
Gray body and strain relief
5
3
4
6
? Available on special order only; contact Switchcraft for price and delivery.
? 15GM7M
? 15GM8M
? 20GM8M
7 pins at 270°
Gray body and strain relief
8 pins at 270°
Gray body and strain relief
8 pins at 262°
Gray body and strain relief
7
9
10
SPECIFYING NOTE: Use letter “JL” in place of “GM” to order same part number
with black housing.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
www.switchcraft.com
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
